G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable

Name: G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable
Brand: Weiroct
Price: 1 USD

Quality G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable for sale

Brand Name : Weiroct

Model Number : 2Cores FTTH cable

Certification : ISO-9001

Place of Origin : China

MOQ : 1KM

Price : USD

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000 Kilometre / Month

Delivery Time : 5-7 Days

Packaging Details : 2KM/Roll/Carton Box

Use : FTTx

Single-mode Fiber : G657A1

No.of Fiber : 1

Product Name : Indoor Optical Fiber Cable FTTx

Fiber Core : 2

Wavelength : 1310/1550(nm)

Outer Sheath : LSZH,PVC

Contact Now

2cores Single Mode G657A FRP Strength Member Indoor Single Mode Fiber Optic Cable FTTH Drop Cable

Characteristics:

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

2. Two parallel strength members ensure good performance of crush resistance to protect the fiber

Simple structure, light weight and high practicability.

3. Novel flute design, easily strip and splice, simplify the installation and maintenance

Geometrical Characteristics:

Fiber Core	1	2	1	4
Cable Dimension(mm)	2.0×3.0	2.0×3.4	2.0×3.8	2.0×4.0
Cable Weight(kg/km)	8	8.0	9	10

Mechanical Characteristics:

Max Load (N)	Long Term	30	30	30	30
Max Load (N)	Short Term	60	60	60	60
Bending Radius(CM)	Dynamic	30	30	30	30
Bending Radius(CM)	Static	15	15	15	15

Fiber:

Fiber Type(core/cladding dimension)

G657

Transmission Characteristics:

	SMF
Wavelength	1310/1550(nm)
Max Attenuation (dB/km)	0.45/0.30
AVG Attenuation (dB/km)	0.40/0.25

Environmental Characteristics:

Storage Operating Temperature

-20℃~+60℃

G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable

Product Tags:

2 Core Single Mode Fiber Optic Cable

G657A 2 Core Single Mode Fiber Optic Cable

G657A FRP FTTH Drop Cable

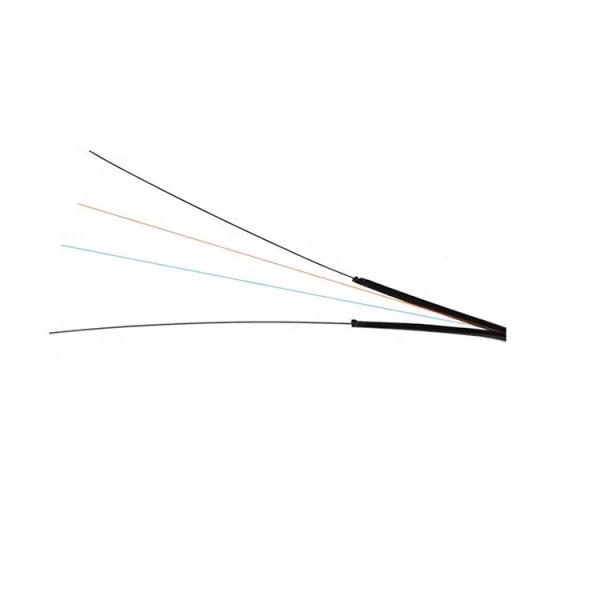

G657A FRP FTTH Drop Cable 2 Core Single Mode Fiber Optic Cable Images
